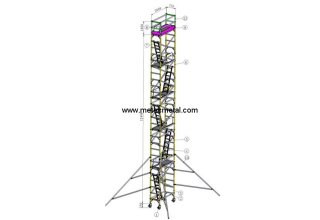

Aluminium tower (series 600)

Series 600 is our single width aluminuim tower with inner ladders.
The platform size is 750mx2000mm
Max.height of tower is 14m.

ID	H(m) Total height	h (m) Platform height	Weight (KGS)
WPK600	2.98	1.98	93
WPK601	3.45	2.45	123
WPK602	3.91	2.91	134
WPK603	4.37	3.37	152
WPK604	4.82	3.82	172
WPK605	5.3	4.3	176
WPK606	5.77	4.77	185
WPK607	6.23	5.23	189
WPK608	6.69	5.69	198
WPK609	7.16	6.16	234
WPK610	7.62	6.62	238
WPK611	8.09	7.09	240
WPK612	8.55	7.55	251
WPK613	9.01	8.01	256
WPK614	9.48	8.48	264
WPK615	9.94	8.94	295
WPK616	10.41	9.41	303
WPK617	10.87	9.87	309
WPK618	11.33	10.33	320
WPK619	11.8	10.8	321
WPK620	12.26	11.26	349
WPK621	12.73	11.73	361
WPK622	13.19	12.19	366
WPK623	13.65	12.65	374
WPK624	14.12	13.12	382

Features:

*Perfect for painting, rendering and maintenance jobs.

*Easy for installation

* 50.8mm tube.
* Guaranteed for life.
* Adjustable wheels & brake.
* Components are fully TIG welded.
* Extruded and manufactured for T6-6061 alloy.
* 5 times lighter than similar steel scaffold components.
* Chemically tested and certified to the highest quality.
